Metro Mobility Upgraded Patriot 4-Wheel Mobility Scooter
Pairs well with
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Metro Mobility Upgraded Patriot 4-Wheel Mobility Scooter
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Our team is here 24/7 to help with product questions, orders, returns, and support—fast, friendly, and hassle-free.
-
Find quick answers to common questions about our mobility scooters — from features and battery use to shipping, warranty, and after-sales support.
-
Reach out to us for assistance with orders, product details, or technical support—our team is here to help.
Everyday Use Made Easy
Park Outings
Leisure Rides
Time with Kids

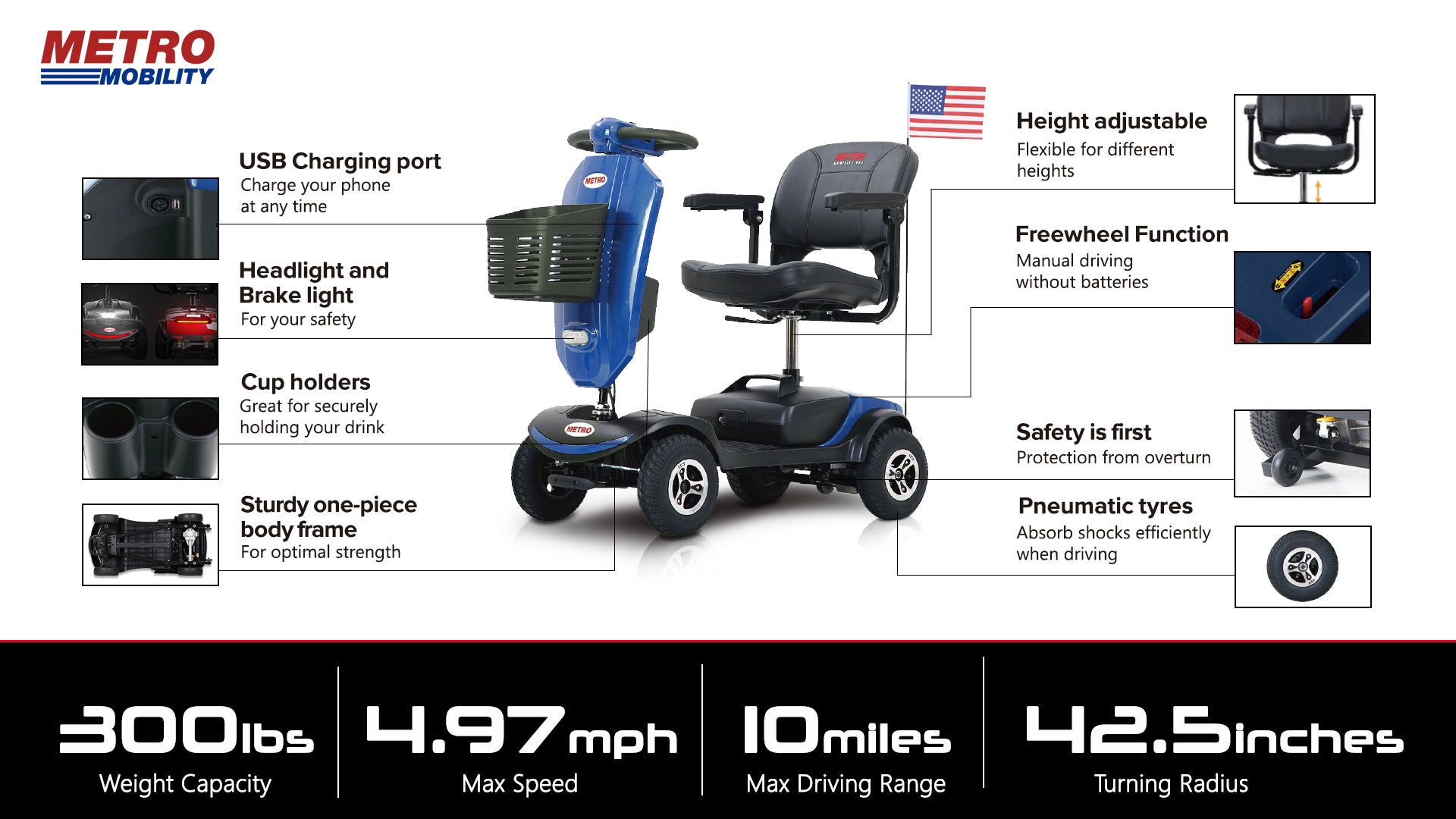

Tech Specs
Performance
- Control: Dual-sided throttle lever (forward/reverse); speed adjustment knob

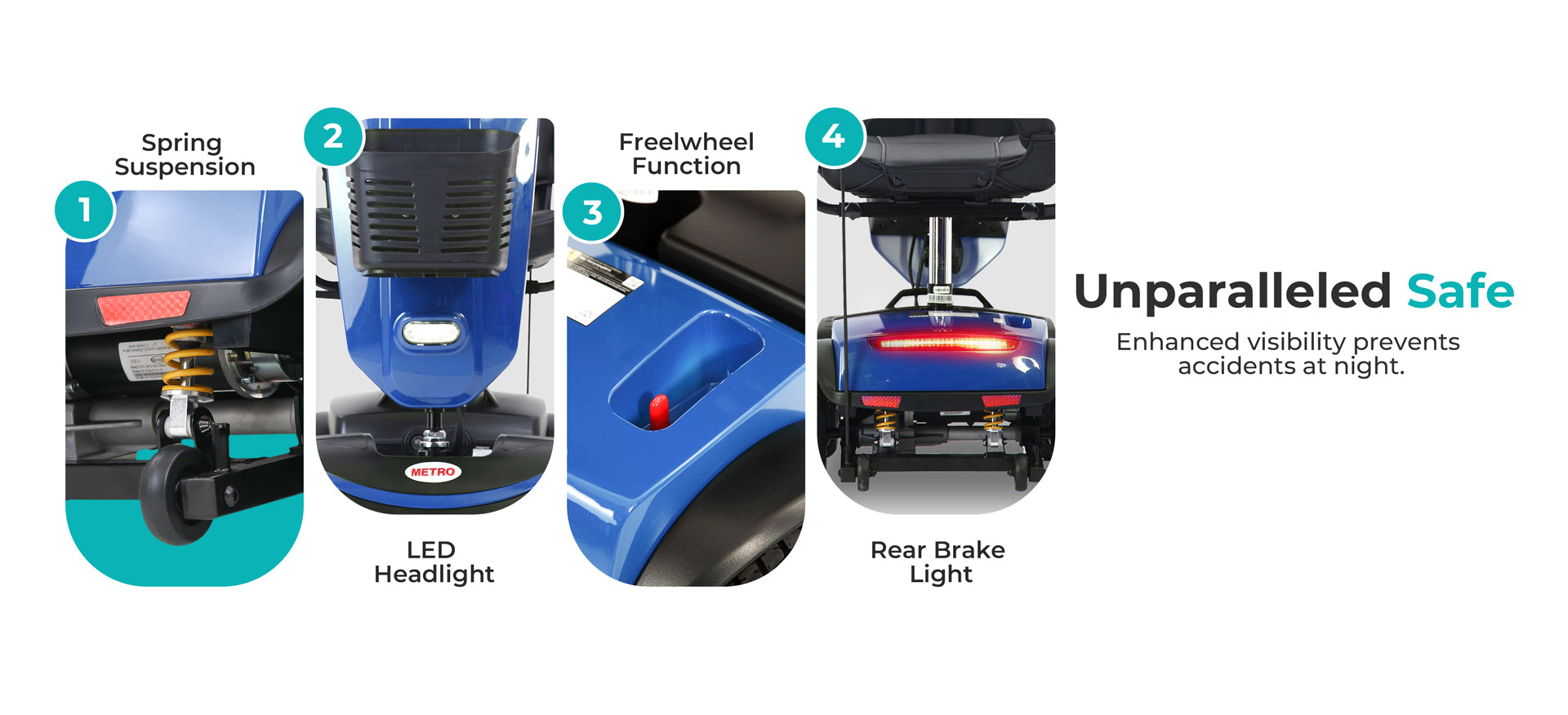

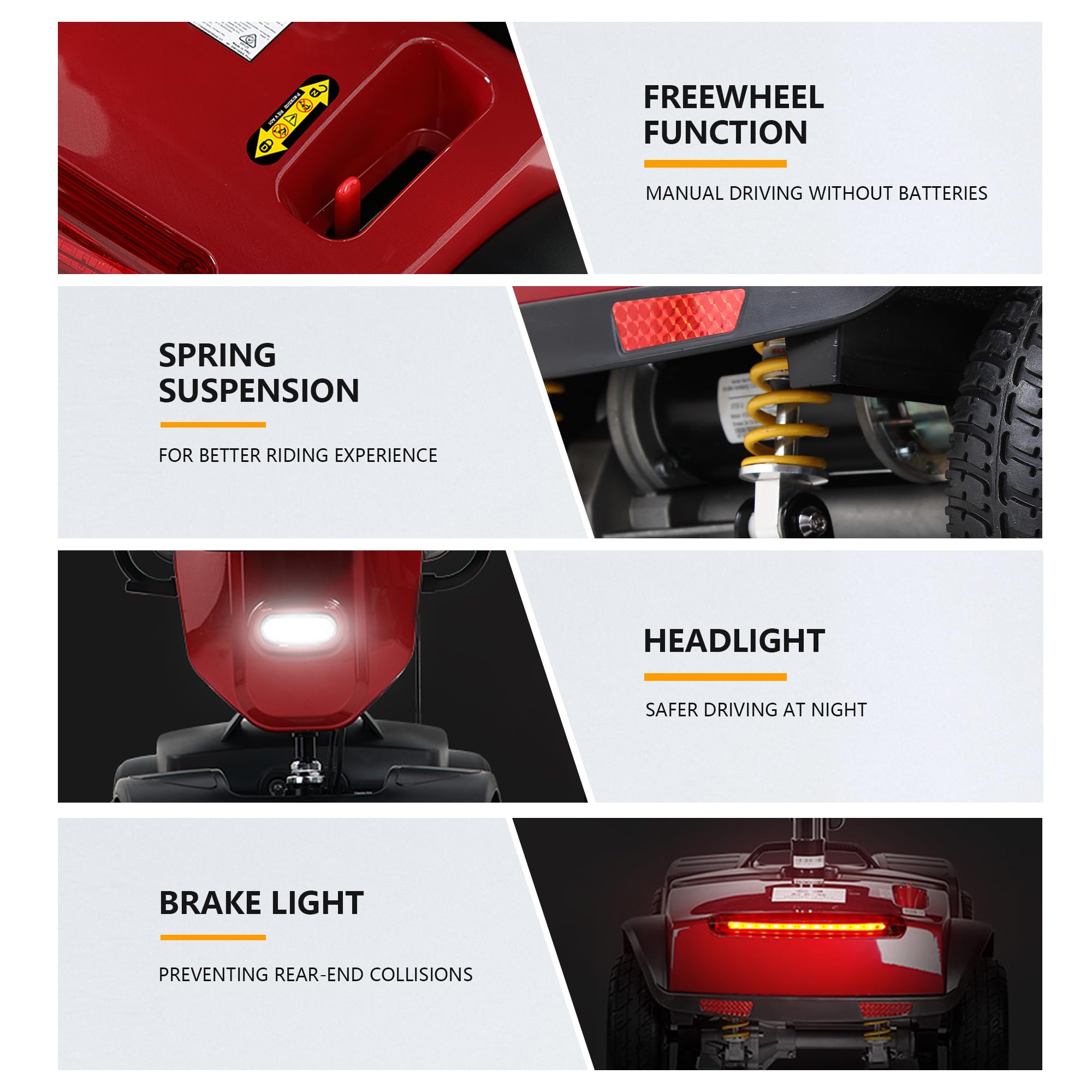

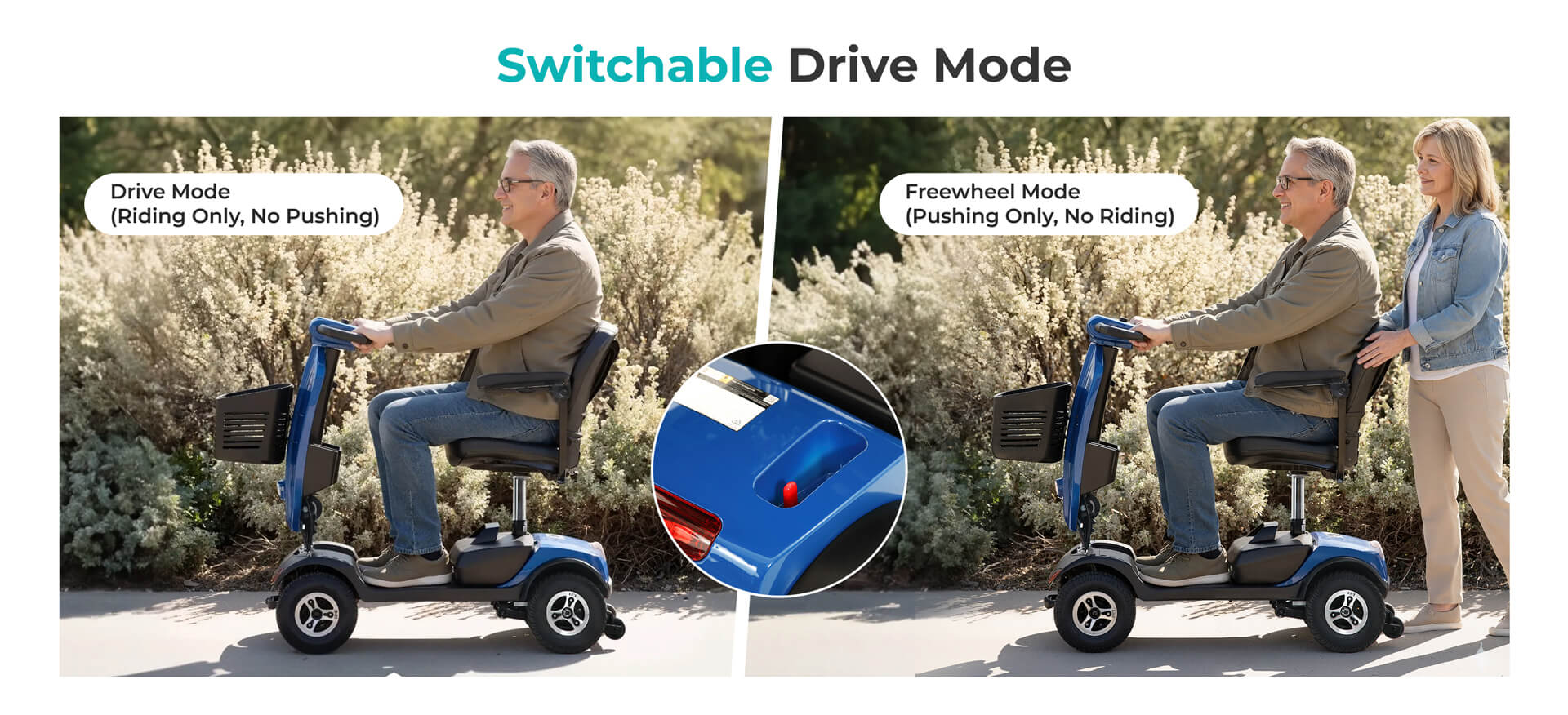

- Features: Horn, LED headlight, freewheel mode, auto-braking on throttle release
- Max Speed: 4.97mph (8km/h)
- Climbing Capacity: 8° (300lbs load)
- Turning Radius: 1100mm
- Range Per Charge: 10-16 miles (15-25km)
- Obstacle Clearance: 45mm (max curb height)
Design
- Type: Non-medical, single-person mobility scooter
- Adjustable: Foldable infinitely adjustable tiller; height-adjustable seat (detent pin)

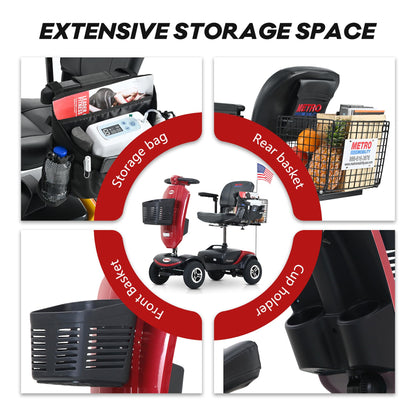

- Ergonomics: Width-adjustable flip-up armrests; removable front basket
- Safety: Anti-tip devices (non-removable); key switch emergency stop
- Water Resistance: IPX4
Dimensions & Weight
- Overall: 1040×510×920mm

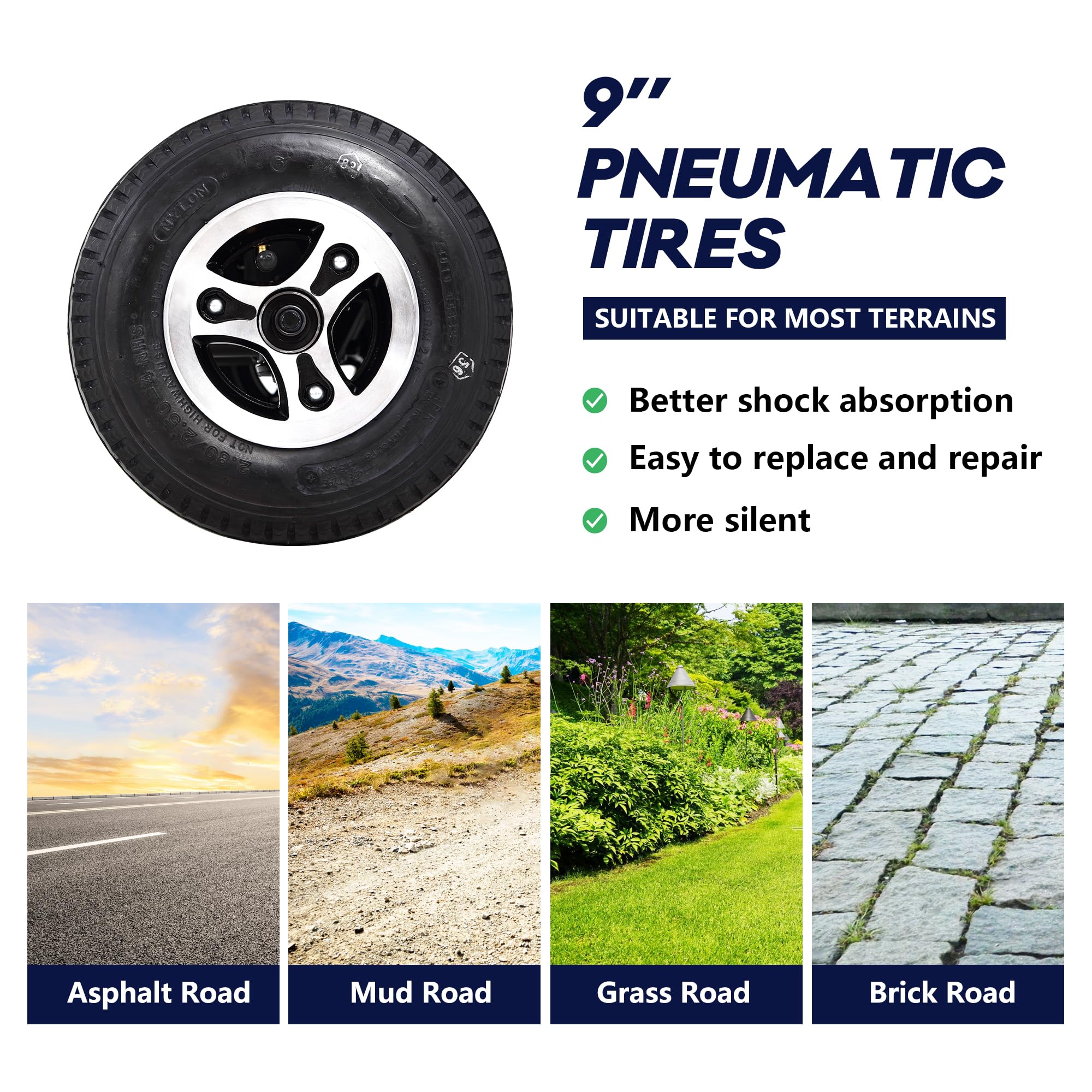

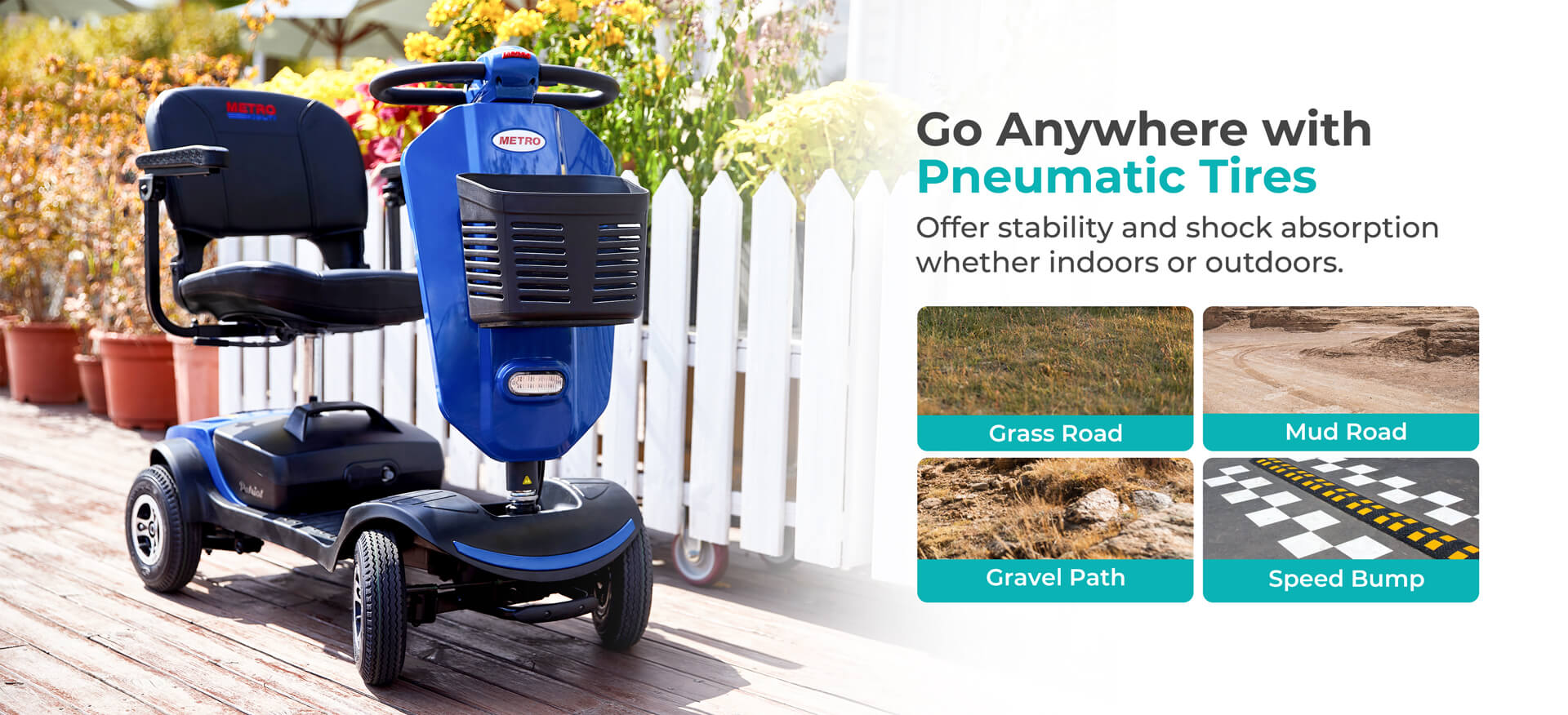

- Wheel Size: Front/rear 228.6mm×76.2mm (pneumatic tires)
- Max Load: 300lbs (136kg)
- Total Weight: 47kg (103.6lbs)
- Component Weights: Seat (7.3kg), Battery (9.5kg), Basket (0.8kg)
- Seat Height: 350mm
Battery & Charging
- Battery: 24VDC (2×12V 12Ah deep-cycle GEL, maintenance-free)
- Charger: 2A off-board (authorized 2.0-6.0A only)
- Charging Time: 8-10 hours (indoor use only)
- Indicators: Red (empty), Yellow (charge needed), Green (full)
- Safety: Reset button; 5A/2.5A/2A fuses
Electronics & Safety
- Controller: DR50-A01 (dealer-programmable)
- Diagnostics: Self-diagnostic beep codes for faults
- Power Conservation: 15-minute auto-sleep mode
- Prohibited: Alcohol use, mobile phones while operating, slopes >8°
- Warning: Rollback possible on inclines when throttle is released
Built-In Components List
Seat
Armrests
Basket
Battery Box
Seat Post
Detent Pin (for Seat Post)
External Charger
Armrest Adjustment Knobs
Keys
FAQs
Please read our FAQs page to find out more.
How long to fully charge the Metro Mobility PATRIOT battery?
Use the original 2A off-board charger. Charge for 8–10 hours (first use included). Charger LED: Red = power on/disconnected, Orange = charging, Green = full. Charge indoors only—avoid damp areas. Unplug from power first, then battery, when done.
What’s the max weight capacity of the Metro Mobility PATRIOT?
Max user weight is 136kg (300lbs), tested with a 136kg dummy. Exceeding this harms performance and voids the warranty.
Can I adjust the seat and armrests on the Metro Mobility PATRIOT?
Yes. Seat removal: Lift armrests, fold backrest, pull seat lever, lift vertically. Seat height: Remove seat, adjust seat post, reinsert detent pin. Armrests: Loosen screws, adjust spacing, retighten.
How to disassemble the Metro Mobility PATRIOT for transport?
Steps: 1. Turn off the scooter. 2. Remove the basket. 3. Take off the seat. 4. Pull out detent pin, remove seat post. 5. Lower tiller to lowest setting with folding knob. 6. Lift via handles into vehicle. Reverse to reassemble.
What’s the driving range of the Metro Mobility PATRIOT?
Estimated 15–25km (10–16 miles) per charge. Range drops if: user >136kg, terrain is hilly/muddy/snowy, temps are extreme, tires are damaged, or frequent starts/stops. Reduce speed to extend range when battery is low.
Can the Metro Mobility PATRIOT climb slopes?
Yes—it safely climbs up to 8° with 136kg max weight. Never climb slopes over 8°, avoid traversing steep slopes, and slow down when reversing downhill.
How to tell if the Metro Mobility PATRIOT battery is low?
Check the tiller’s battery gauge: 8 LEDs show percentage (Red = <10%, Yellow = charge needed, Green = full). <10% (1 LED) means low—charge immediately to avoid damage.
Does the Metro Mobility PATRIOT have lights and a horn?
Yes. Lights: Press the blue front button (once on, again off)—use in low light. Horn: Press the control panel’s horn button to warn pedestrians.
What warranty does the Metro Mobility PATRIOT offer?
- 1-year limited: Drivetrain (transaxle, motor, brake), electrical parts (controller, charger).
- 6-month: Batteries.
- Not covered: Wear items (tires, bulbs, upholstery), damage from misuse/accidents, or modified parts. Contact dealer for service.

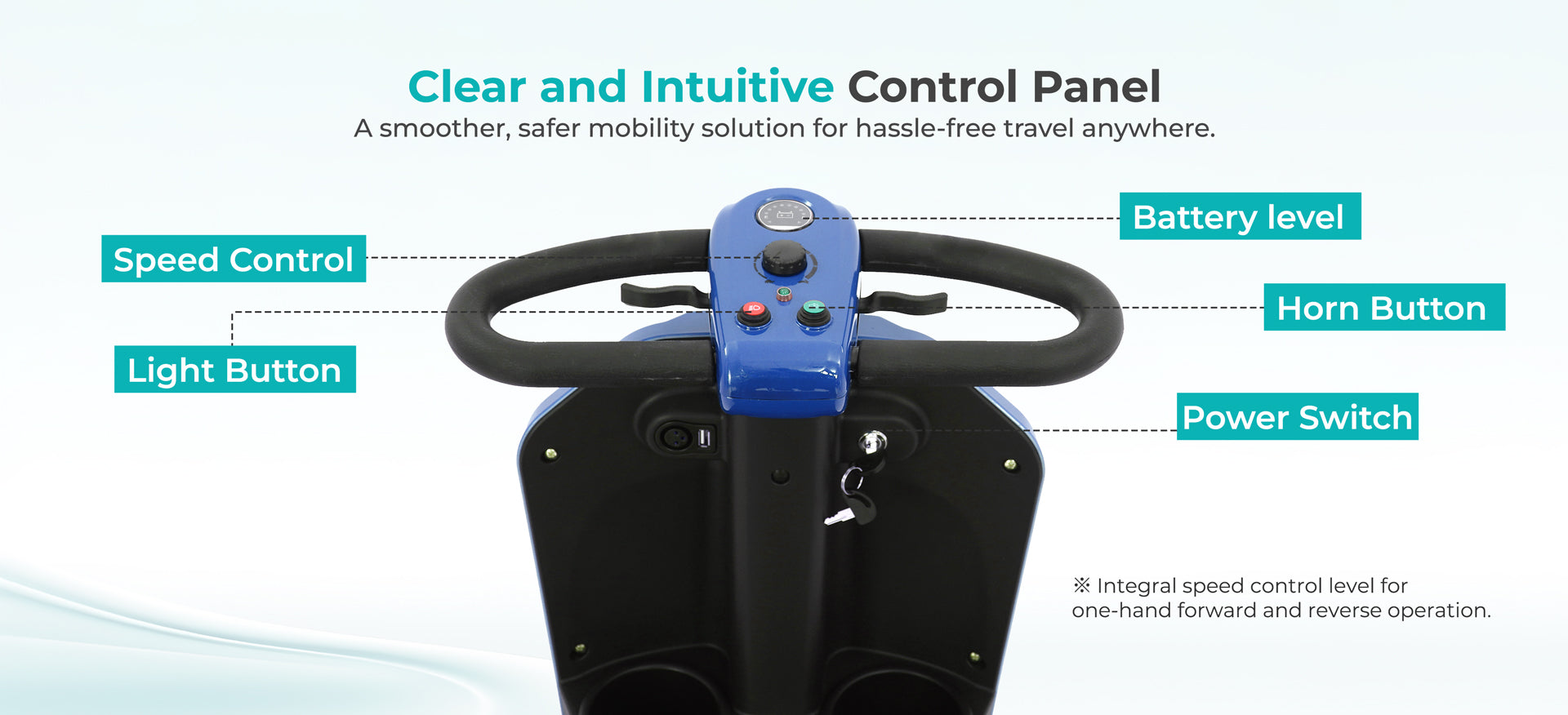

How to control speed and direction on the Metro Mobility PATRIOT?
- Speed: Turn the speed knob left (slow) or right (fast).
- Direction: Throttle lever—right hand pull/left thumb push (forward), left hand pull/right thumb push (reverse). Release lever to stop; reverse speed is 50% slower.
